Plotting tutorial

The following markdown page gives a brief, example-driven introduction to plotting histograms with AutoHist.jl. All the plotting functionality is provided through extensions for Makie.jl and Plots.jl. Both extensions provide recipes for plotting AutomaticHistogram objects, and additionally lets the user utilize the automatic bin selection rules from AutoHist when calling the respective built-in histogram plotting functions from the two libraries.

Plots.jl

In order to use the AutoHist.jl plotting functionality with Plots.jl, we will need to load both libraries first.

using AutoHist; import Plots

We start by showing how to plot the result from calling fit or autohist. The Plots extension provides a type recipe for objects of the AutomaticHistogram type, so that Plots.plot(h) will draw the histogram h, as illustrated in the code snippet below.

import Random
x = Random.randexp(Random.Xoshiro(1812), 10^5)

h1 = autohist(x, AIC())
h2 = autohist(x, BIC())

# Set axis limits
xlims = [-0.5, 6.0]
ylims = [-0.05, 1.0]

# Plot a filled histogram
p1 = Plots.plot(h1, color=:red, alpha=0.4, label="", title="AIC", xlims=xlims, ylims=ylims)

# Plot a stephist
p2 = Plots.stephist(h2, color=:green, label="", title="BIC", xlims=xlims, ylims=ylims)

# Display the two plots side-by-side
Plots.plot(p1, p2, layout=(1, 2), size=(670, 320))

As illustrated here, the call to Plots.plot also accepts additional keyword arguments which allow us to customize the look of the histogram. AutomaticHistogram objects are compatible with most histogram-like seriestypes^[1], so the above call to Plots.plot is equivalent to calling Plots.histogram with the same input. By default, the plotted histogram is a filled bar chart. If one desires, a non-filled histogram can be drawn by using the stephist seriestype, as we did above.

Automatic histograms can also be plotted by accessing Plots.jl functions directly. The general syntax for fitting a histogram in this manner is Plots.plot(x, rule), where rule is any of the bin selection rules provided by the AutoHist.jl package, see the methods page. Note that the above syntax supports any histogram-like seriestype, so the above inline code snippet is equivalent to Plots.histogram(x, rule). When using Plots.jl functions directly, one can pass additional keyword arguments directly to the plotting function. In the code snippet below, we show how to directly plot a right-closed histogram with support constrained to be positive.

# Plot a filled histogram
p3 = Plots.plot(x, BayesBlocks(), color=:black, alpha=0.4, label="",
                title="BayesBlocks", xlims=xlims, ylims=ylims)

# Plot a stephist, supported on [0, maximum(x)] with left-closed intervals
p4 = Plots.stephist(x, RRH(), support=(0.0, Inf), closed=:left, color=:blue,
                    label="", title="RRH", xlims=xlims, ylims=ylims)

# Display the two plots
Plots.plot(p3, p4, layout=(1, 2), size=(670, 320))

Makie.jl

To showcase the Makie.jl extension, we start by loading the required packages:

using AutoHist; import Makie, CairoMakie;

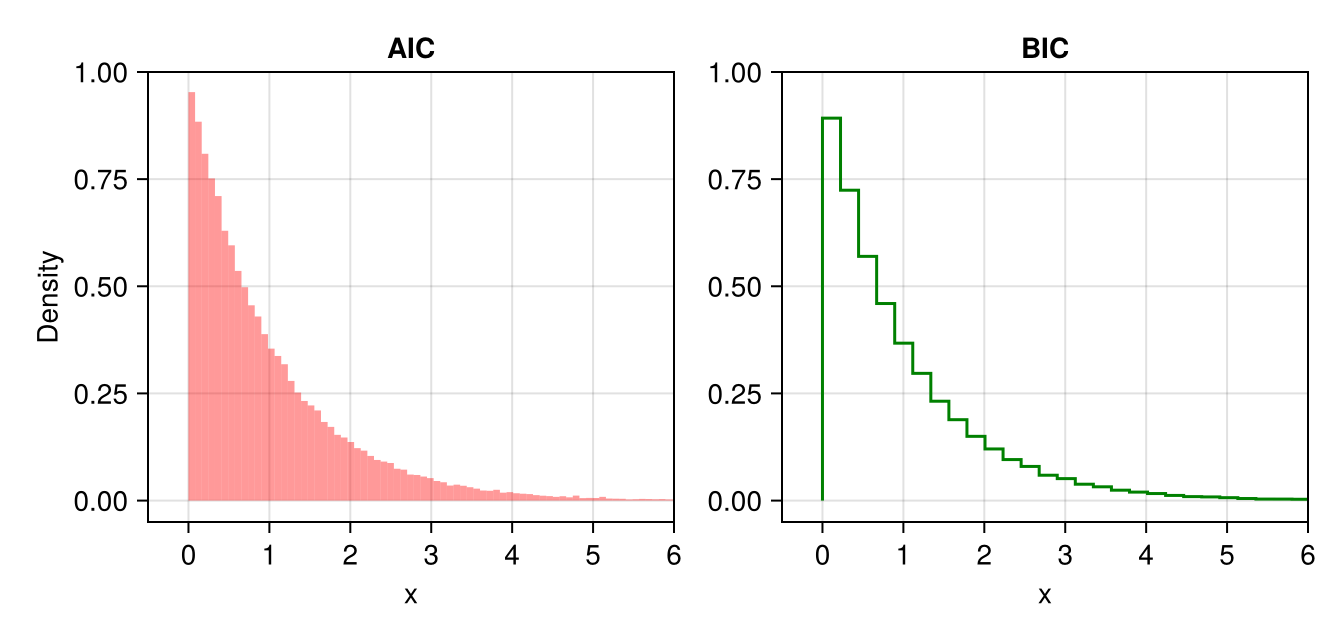

Quickly plotting a pre-fitted AutomaticHistogram object can be done easily via Makie.plot(h). AutomaticHistogram objects also supports other histogram-like recipes such as hist, barplot and stephist, so e.g. Makie.hist(h) can also be used to draw a fitted histogram. Below, we show a slightly more involved example where we plot two histograms fitted using different rules side-by-side, using a stephist for the last panel.

import Random
x = Random.randexp(Random.Xoshiro(1812), 10^5)

h1 = autohist(x, AIC())
h2 = autohist(x, BIC())

# Specify axis lims, ticks
limits = ((-0.5, 6.0), (-0.05, 1.0))
yticks = 0.0:0.25:1.0

# Make a figure with a 2x1 Layout
fig = Makie.Figure(size=(670, 320))
ax1 = Makie.Axis(fig[1, 1], title="AIC", xlabel="x",
                 ylabel="Density", limits=limits, yticks = yticks)
ax2 = Makie.Axis(fig[1, 2], title="BIC", xlabel="x", limits=limits, yticks=yticks)

# Draw a filled AIC histogram in the left panel
Makie.plot!(ax1, h1, alpha=0.4, color="red")

# Draw a BIC stephist in the right panel
Makie.stephist!(ax2, h2, color="green")

fig # Display figure

As shown in the above example, we can pass additional plot attributes to the Makie plotting functions in order to customize our histogram plots. We refer the interested reader to the Makie documentation for further details on the supported attributes.

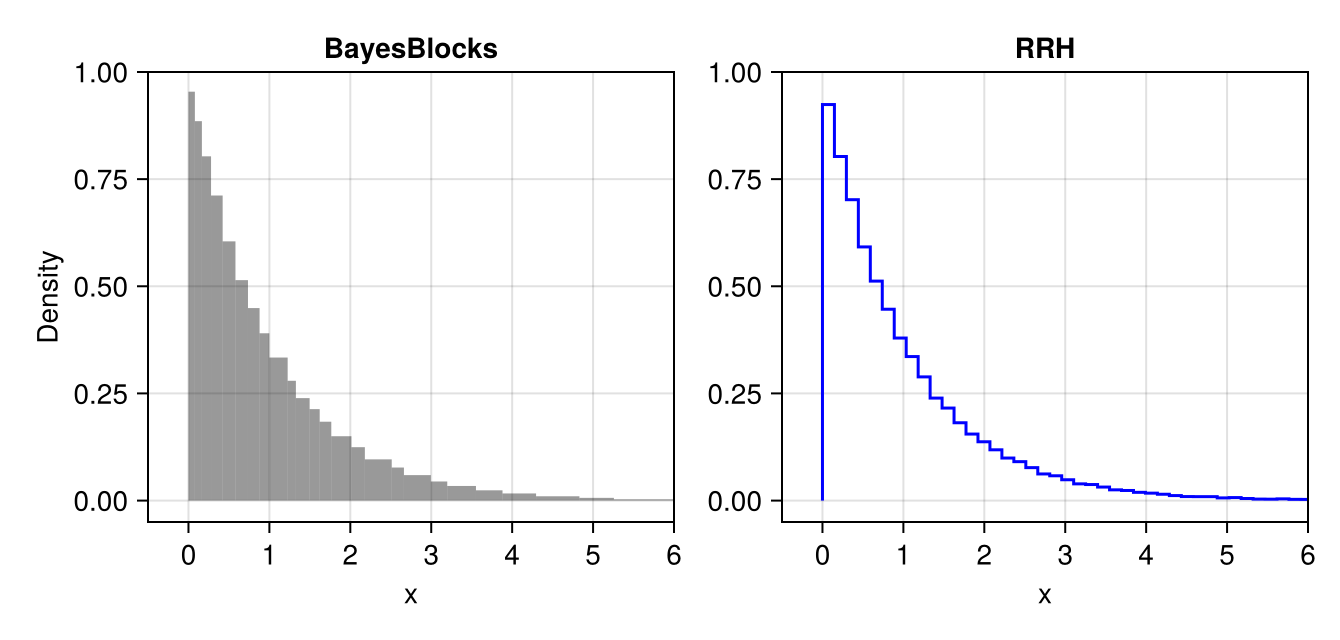

We can also plot automatically selected histograms directly without needing to construct an AutomaticHistogram object directly first. This is achieved by calling e.g. Makie.plot(x, rule), where rule is any of the bin selection rules provided as part of AutoHist.jl, see the methods page. Alternatively, we can use another histogram-like series type like stephist instead. In the following code snippet, we illustrate the use of these methods on the simulated exponential dataset considered previously:

# Make a figure with a 2x1 Layout
fig = Makie.Figure(size=(670, 320))
ax1 = Makie.Axis(fig[1, 1], title="BayesBlocks", xlabel="x",
                 ylabel="Density", limits=limits, yticks=yticks)
ax2 = Makie.Axis(fig[1, 2], title="RRH", xlabel="x", limits=limits, yticks=yticks)

# Draw a filled BayesBlocks histogram in the left panel
Makie.plot!(ax1, x, BayesBlocks(), alpha=0.4, color="black")

# Draw a RRH stephist in the right panel
Makie.stephist!(ax2, x, RRH(), color="blue")

fig # Display figure
